0.2㎛~2㎛ 粉塵 99.95% over
Model Number 一般/NL 静電気防止 / ALU 発水 / PTFE 静電気防止＋発水
/ ALU + PTFE
CF-800NL CF-800ALU CF-800PTFE CF-800ALU+PTFE
CF-1200NL CF-1200ALU CF-1200PTFE CF-1200ALU+PTFE

General Information < 一般的性質 >
Base Media / 材質 Polyester Polyester Polyester Polyester
Treatment / 表面処理 n/a Aluminum coating Antistatic PTFE Coating
Oleo/Hydrophobic 		ALU+PTFE Coating Antistatic
Oleo/ Hydrophobic
Filter Size / フィルタ一サイズ 2 Decitex 2 Decitex 2 Decitex 2 Decitex
Color / 色 White Gray white Gray
Weights / 重量 260 g/㎡ 265 g/㎡ 265 g/㎡ 270 g/㎡
Material Thickness / 厚み 0.6 ㎜ 0.6 ㎜ 0.6 ㎜ 0.6 ㎜
Air Permeability At 200Pa. / 通気性 570 ㎥/㎡h 520 ㎥/㎡h 520 ㎥/㎡h 510 ㎥/㎡h
Temperature Resistance / 温度条件 120℃(Dry) 90℃(Moisture) 120℃(Dry) 90℃(Moisture) 120℃(Dry) 90℃(Moisture) 120℃(Dry) 90℃(Moisture)

Chemical Resistance < 化学的性質 >
Oil & Water Resistance / 耐油、耐水性 Good Good Excellent Excellent
HydrolysisResistance / 耐ガス性 Fair Fair Good Excellent
Acid Resistance / 耐酸性 Good Good Good Good
AlkalineResistance / 耐アルカリ性 Fair Fair Good Good
ResistanceinOhm / 耐電性 n/a 1.0 X 10³ n/a 1.0 X 10³
Dust Release / 粉塵排出 Excellent Excellent Excellent Excellent

Filter Test < フィルタ一テスト >
Application CategoryAfter BIA U.S.G.C U.S.G.C U.S.G.C U.S.G.C
BIA テスト Nr. 9508410/ 6210 Nr.9508410 / 6210 Nr.9508410 / 6210 Nr.9508410/6210
Operating Efficiency / 集塵效率 99.95% on 0.2㎛~2㎛ 99.95% on0.2㎛~2㎛ 99.95% on 0.2㎛~2㎛ 99.95% on 0.2㎛~2㎛
Application Fields / 適用分野 metal, wood,
chemical, cement,
food, paper,
pharmaceutical,
welding smoke,
shot blasting,
foundry dust,
metallic fume 		metal, wood,
chemical, cement,
food, paper,
pharmaceutical,
welding smoke,
shot blasting,
foundry dust,
powder 		metallurgical powder
oilyweld fume
pharmaceutical,
weldingsmoke,
shot blasting,
foundrydust,
powder 		activated carbon,
pharmaceutical,
powder paint,
welding smoke,
shot blasting,
foundry dust, uranium

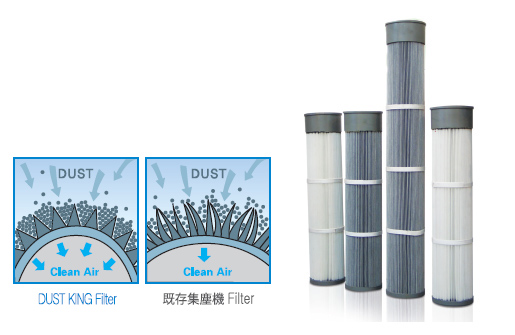

フィルタ一の長所
設置、交換が簡単
一般Bagよりろ過面積が大きい
折り目(しわ)が多い
エア一消費量が少ない
エア一、水洗浄が可能
上下部はポリウレタン製
Bag挿入後Gasketなしに Venturi固定
維持、保守費用が少ない
