処理風量とろ過速度は粉塵の種類により異なる |
|
Filter Housing 材質は SS400 • SUS304可能 |
|
Compressure Air 圧力 : 2.5kg/㎠~4.5kg/㎠ 使用 |
|
電源 220V単相, 220/380V 3相, 440V 3相 選択可能 |
| 仕 様 |
| Model No. |
処理風量
(㎥/min) |
ろ過面積
(㎡) |
ろ過速度
(m/min) |
風圧
(mmAq) |
Motor
Kw(Hp) |
Number
of filter |
INLET
DUCT(Ø) |
Air使用量
(ℓ/min) |
| Min.~Max. |

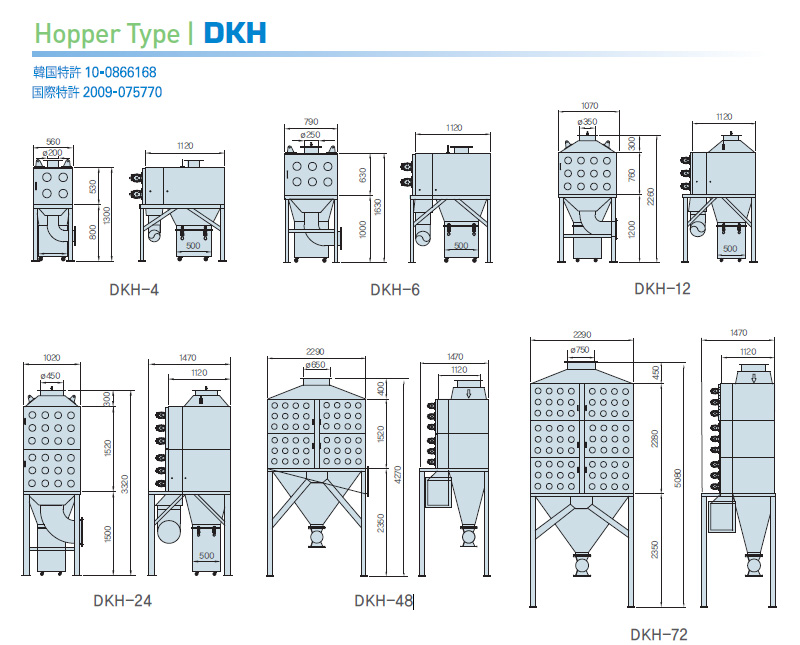

| DKH-4 |
20~25 |
16 |
1.0~2.0 |
200~350 |
2.2 (3) |
4 |
200 |
104 |
| DKH-6 |
25~50 |
24 |
1.0~2.0 |
200~350 |
3.7 (5) |
6 |
250 |
156 |
| DKH-12 |
50~100 |
48 |
1.0~2.0 |
200~350 |
5.5 (7.5) |
12 |
350 |
312 |
| DKH-24 |
100~200 |
96 |
1.0~2.0 |
200~350 |
11 (15) |
24 |
450 |
624 |
| DKH-48 |
200~400 |
192 |
1.0~2.0 |
200~350 |
22.5 (30) |
48 |
650 |
1248 |
| DKH-72 |
300~600 |
288 |
1.0~2.0 |
200~350 |
30 (40) |
72 |
750 |
1872 |
|
|
|
 |
|
 |
| 仕 様 |
| Model No. |
処理風量
(㎥/min) |
ろ過面積
(㎡) |
ろ過速度
(m/min) |
風圧
(mmAq) |
Motor
Kw(Hp) |
Number
of filter |
INLET
DUCT(Ø) |
Air使用量
(ℓ/min) |
| Min.~Max. |

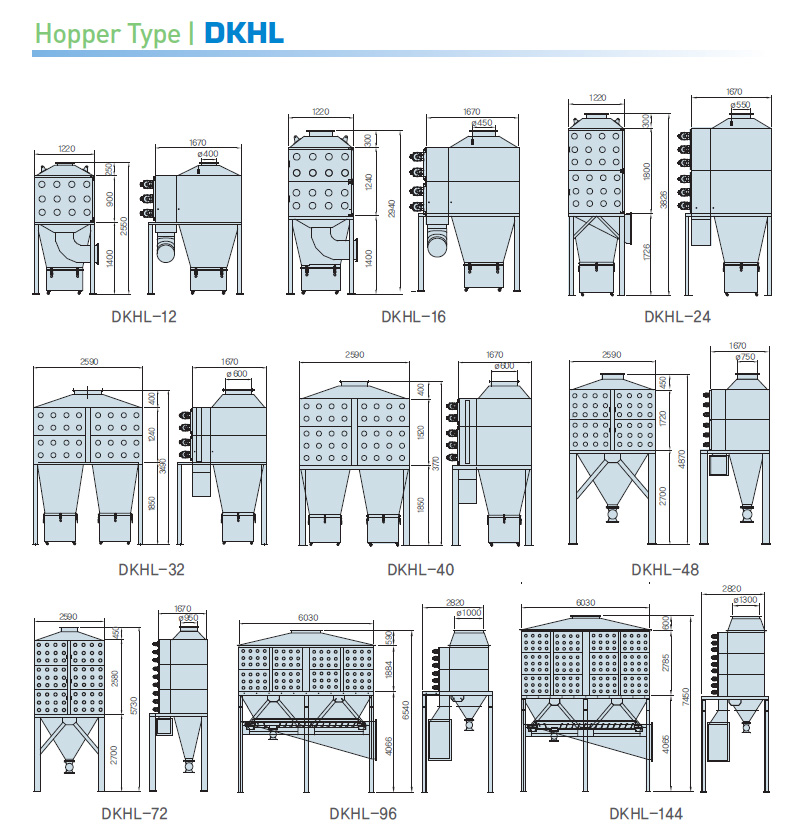

| DKHL-12 |
70~140 |
72 |
1.0~2.0 |
200~350 |
5.5 (7.5) |
12 |
400 |
394 |
| DKHL-16 |
100~200 |
96 |
1.0~2.0 |
200~350 |
11 (15) |
16 |
450 |
525 |
| DKHL-24 |
150~300 |
144 |
1.0~2.0 |
200~350 |
15 (20) |
24 |
550 |
788 |
| DKHL-32 |
200~400 |
192 |
1.0~2.0 |
200~350 |
19 (25) |
32 |
600 |
1050 |
| DKHL-40 |
250~500 |
240 |
1.0~2.0 |
200~350 |
22 (30) |
40 |
650 |
1312 |
| DKHL-48 |
300~550 |
288 |
1.0~2.0 |
200~350 |
30 (40) |
72 |
750 |
1575 |
| DKHL-72 |
400~800 |
432 |
1.0~2.0 |
200~350 |
- |
72 |
950 |
2362 |
| DKHL-96 |
600~1000 |
576 |
1.0~2.0 |
200~350 |
- |
96 |
1000 |
3149 |
| DKHL-144 |
800~1500 |
864 |
1.0~2.0 |
200~350 |
- |
144 |
1300 |
4723 |
|
|
|
| Option |
| 1. |
Rotary V/V, Screw Conveyor,
Compressure & Air Dryer |
| 2. |
電源 50Hz |
| 3. |
Filter Bag (General, static dischargable) |
| 4. |
Platform Lodder |
|
|
|
|
