Impinjet Scrubber ?
HSIS (Hansung Impinjet Scrubber) is our patented product, with which we maximizes dust collecting efficiency by combining advantages of the conventional packed tower and the spray scrubber.
Designed to collect dust and fume at the same time with the advantages of the conventional tower and scrubber, HSIS consists of a three-step spray nozzle, an impinge part and a packing part.
Most of dust and odor are removed while polluted gas, flowing into the lower part of the scrubber. And the remaining materials (especially monomer fume of 0.1¥ìm or smaller) are removed almost completely while passing through the three-layer spray water and trarette.

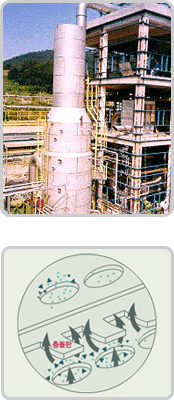

The impact plate consists of thousands of holes and an impact plate. The polluted gas, passing through the impact plate at a high velocity, is collected by the bubble effect and atomized water due to impact power. The trarette effectively collects and removes the monomer fume by distribution of liquid and enlargement of the contacting surface for gas.

Features
Removing dust (1¥ìm ~ 100¥ìm) and monomer fume (0.001¥ìm ¡­ 0.1¥ìm) at the same time: Dust collecting area of the packed tower is 0.001¥ìm ¡­ 0.08¥ìm.
High Efficiency: Max. 99.9% for particles of 1§­ or larger in diameter.
The impact plate can be installed in multi layers according to a type of gas and density of polluted gas. The more layers, the higher efficiency.
As the velocity of flow is higher than that of the packed tower, installation space is small and manufacturing cost is low. Large number of holes on the impact plate enables even gas collecting and no channeling effect.

Applications
Chemical Plants (ABS / PS / PVC), Fertilizer Plants (HF Gas), Boiler Smoke, Places requiring simultaneous collection of dust, odor and gas, Places generating SO2, Cl2, HCL, HF, H2S, Formalin, Phosgene, Etc.

SPECIFICATION
Model Gas Rate
(§©/min)		 Body size (mm) Unit
cyc'e
¼ö·®		 Weight
(kg)		 Press'
drop
(mmAq)		 Boiler
capa'
(ton/hr)
W L H
HSCY-3 30 360 850 2600 3 350 60 1
HSCY-6 60 970 950 2900 6 620 60 2
HSCY-9 90 970 1140 3300 9 750 60 3
HSCY-12 120 1080 1140 3300 11 940 60 4
HSCY-15 150 1180 1320 3700 14 1100 60 5
HSCY-18 180 1300 1340 3700 18 1320 70 6
HSCY-21 210 1420 1340 3700 20 1470 70 7
HSCY-24 240 1300 1530 4000 23 1640 70 8
HSCY-30 300 1560 1630 4100 28 2030 80 10
HSCY-45 450 1800 1880 4300 440 3050 80 15
HSCY-60 600 1980 2080 5700 60 4160 90 20
HSCY-70 700 2240 2220 6580 77 4720 90 25
