0.2§­~2§­ Particles 99.95% over
Model Number General/NL Antistatic/AL Water proof/PTFE Antistatic+Water proof/ALU+PTFE
CF-800NL CF-800ALU CF-800PTFE CF-800ALU+PTFE
CF-1200NL CF-1200ALU CF-1200PTFE CF-1200ALU+PTFE

General Information < General characteristics >
Base Media Polyester Polyester Polyester Polyester
Surface finishing n/a Aluminum coating Antistatic PTFE Coating
Oleo/Hydrophobic 		ALU+PTFE Coating Antistatic
Oleo/ Hydrophobic
Filter Size 2 Decitex 2 Decitex 2 Decitex 2 Decitex
Color White Gray white Gray
Weights 260 g/§³ 265 g/§³ 265 g/§³ 270 g/§³
Thickness 0.6 §® 0.6 §® 0.6 §® 0.6 §®
Air Permeability At 200Pa. 570 §©/§³h 520 §©/§³h 520 §©/§³h 510 §©/§³h
Temperature condition 120¡É(Dry) 90¡É(Moisture) 120¡É(Dry) 90¡É(Moisture) 120¡É(Dry) 90¡É(Moisture) 120¡É(Dry) 90¡É(Moisture)

Chemical Resistance < Chemical characteristics >
Oil & water resistance Good Good Excellent Excellent
Hydrolysis Resistance Fair Fair Good Excellent
Acid resistance Good Good Good Good
Alkali resistance Fair Fair Good Good
Electrical resistance in Ohm n/a 1.0 X 10©ø n/a 1.0 X 10©ø
Dust release Excellent Excellent Excellent Excellent

Filter Test < Filter test >
Application Category After BIA U.S.G.C U.S.G.C U.S.G.C U.S.G.C
BIA Test Nr. 9508410/ 6210 Nr.9508410 / 6210 Nr.9508410 / 6210 Nr.9508410/6210
Dust collecting efficiency 99.95% on 0.2§­~2§­ 99.95% on0.2§­~2§­ 99.95% on 0.2§­~2§­ 99.95% on 0.2§­~2§­
Applicable area metal, wood,
chemical, cement,
food, paper,
pharmaceutical,
welding smoke,
shot blasting,
foundry dust,
metallic fume 		metal, wood,
chemical, cement,
food, paper,
pharmaceutical,
welding smoke,
shot blasting,
foundry dust,
powder 		metallurgical powder
oilyweld fume
pharmaceutical,
weldingsmoke,
shot blasting,
foundrydust,
powder 		activated carbon,
pharmaceutical,
powder paint,
welding smoke,
shot blasting,
foundry dust, uranium

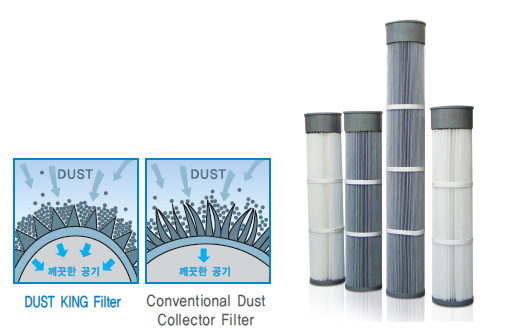

Advantage of filter
Easy installation and replacement
Larger filter area than general bags.
More pleats.
Plastic cage.
Less air consumption.
Air available and washable.
Polyurethane material for top and bottom.
Venturi correction without gasket after
inserting Bag.
Cost reduction in Maintenance.
