Processing flow and filtering velocity may vary by the sort of dust.
SS400-SUS304 is available for filter housing material.
Compressor air pressure : applying 2.5kg/§² ~4.5kg/§²
Power : Optional from 220V single phase, 220/380V 3 phases, 440V 3 phase

SPECIFICATION
Model No. Process flow
(§©/min) 		Filtering Area
(§³)		 Filtering Velocity
(m/min)		 Static pressure
(mmAq)		 Motor
Kw(Hp)		 FILTER
of filter		 Inlet Duct(¨ª)
(mm) 		Air Consumption
(§¤/min)
Min.~Max.

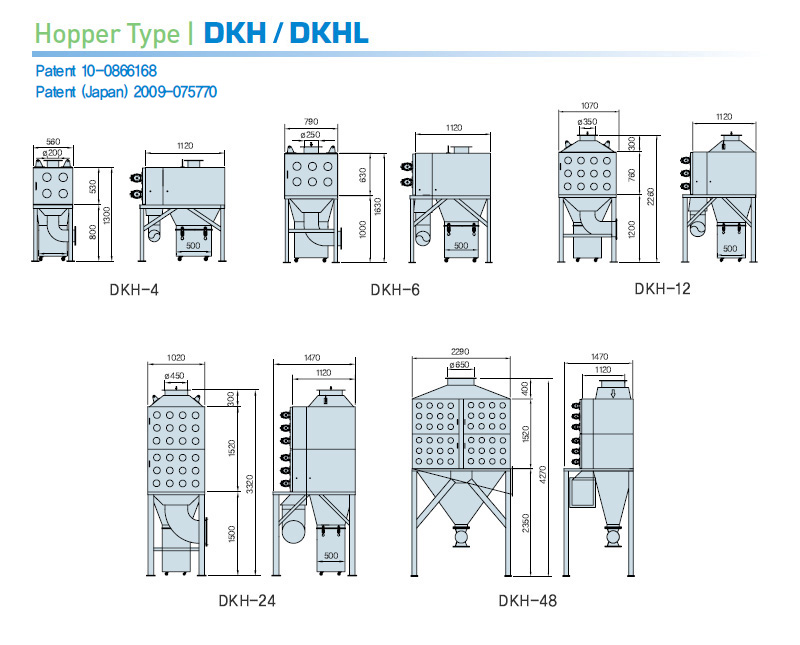

DKH-4 20~25 16 1.0~2.0 200~350 2.2 (3) 4 200 104
DKH-6 25~50 24 1.0~2.0 200~350 3.7 (5) 6 250 156
DKH-12 50~100 48 1.0~2.0 200~350 5.5 (7.5) 12 350 312
DKH-24 100~200 96 1.0~2.0 200~350 11 (15) 24 450 624
DKH-48 200~400 192 1.0~2.0 200~350 22.5 (30) 48 650 1248

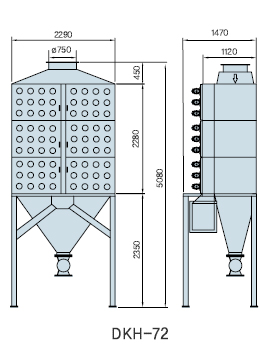

DKH-72 300~600 288 1.0~2.0 200~350 30 (40) 72 750 1872

SPECIFICATION
Model No. Process flow
(§©/min) 		Filtering Area
(§³)		 Filtering Velocity
(m/min)		 Static pressure
(mmAq)		 Motor
Kw(Hp)		 FILTER
of filter		 Inlet Duct(¨ª)
(mm) 		Air Consumption
(§¤/min)
Min.~Max.

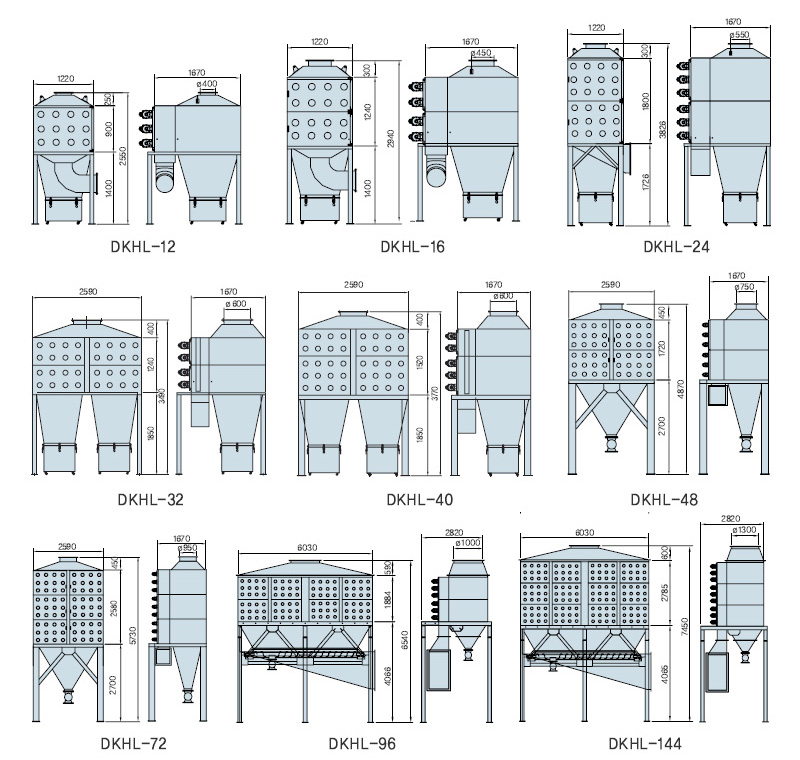

DKHL-12 70~140 72 1.0~2.0 200~350 5.5 (7.5) 12 400 394
DKHL-16 100~200 96 1.0~2.0 200~350 11 (15) 16 450 525
DKHL-24 150~300 144 1.0~2.0 200~350 15 (20) 24 550 788
DKHL-32 200~400 192 1.0~2.0 200~350 19 (25) 32 600 1050
DKHL-40 250~500 240 1.0~2.0 200~350 22 (30) 40 650 1312
DKHL-48 300~550 288 1.0~2.0 200~350 30 (40) 72 750 1575
DKHL-72 400~800 432 1.0~2.0 200~350 - 72 950 2362
DKHL-96 600~1000 576 1.0~2.0 200~350 - 96 1000 3149
DKHL-144 800~1500 864 1.0~2.0 200~350 - 144 1300 4723
Option
1. Rotary V/V, Screw Conveyor,
Compressor & Air Dryer
2. Power 50Hz
3. Filter Bag (General, static dischargable)
4. Platform Ladder
